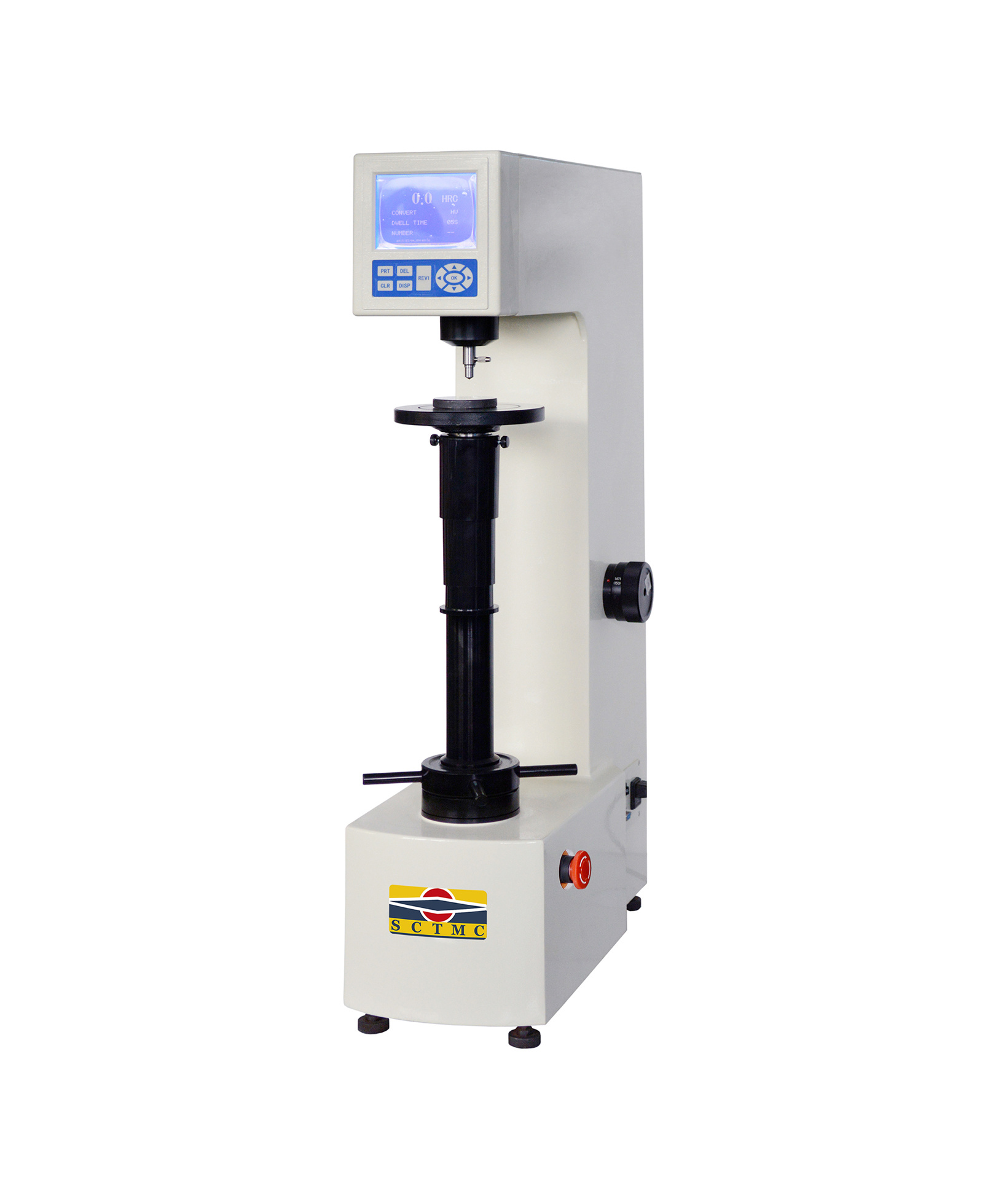

HRS-150L High-Height Digital Rockwell Hardness Tester

Lifting screw rod After heat treatment, the hardness reaches Between 35 and 40 HRC, Structurally stable and wear-resistant;
The weights and lever are calibrated using traditional manufacturing techniques, ensuring high precision and allowing for fine adjustments via the mechanical structure.
5.6-inch HD touchscreen display and operation, with dynamic image visualization of the equipment’s operating process and audible buzzer alerts;
Supports Rockwell hardness test scales; after selecting a scale, the system prompts the appropriate indenter and test force to be chosen, with the test force adjusted via the load‑change handwheel.
Supports conversion among various hardness scales, with real-time conversion and instant switching.
Supports upper and lower limit settings, provides over‑tolerance alarm prompts, and features arc‑correction compensation.
Hardness Test Results Real-time saving, automatic calculation of maximum, minimum, average, standard deviation, repeatability, and other parameters; supports multi‑folder selection, with options to delete files and print output.
Built-in thermal printer with fast printing speed, equipped with USB interface allows users to directly export data to a USB flash drive. 。

Suitable for quenched, tempered, annealed, and cold‑hard castings, malleable castings, cemented carbide steels, aluminum alloys, copper alloys, and bearings.

Hardness testing of steel, etc.

HRS-150 L-heightened type Digital Rockwell Hardness Tester It features a high-definition color touchscreen, It can display and set the current test scale, test force, indenter, dwell time, hardness conversion values, and more. The instrument employs a weight‑loading mechanism; during operation, simply apply a manual pre‑load until the instrument emits an audible beep, after which it automatically applies the load, holds it, unloads, and displays the hardness value. The procedure is user‑friendly, with intuitive readouts. This device is a tall‑type model, making it more convenient to measure large objects.

Lifting screw rod After heat treatment, the hardness reaches Between 35 and 40 HRC, Structurally stable and wear-resistant;
The weights and lever are calibrated using traditional manufacturing techniques, ensuring high accuracy and allowing for fine adjustments via the mechanical structure.
5.6-inch HD touchscreen display and operation, with dynamic image visualization of the equipment’s operating process and audible buzzer alerts;
Supports Rockwell hardness test scales; after selecting a scale, the system prompts the appropriate indenter and test force, with the test force switched via the load‑change handwheel.
Supports conversion among various hardness scales, with real-time conversion and instant switching.
Supports upper and lower limit settings, over‑tolerance detection alerts, and includes arc‑correction compensation.
Hardness Test Results Real-time saving, automatic calculation of maximum, minimum, average, standard deviation, repeatability, and other parameters; supports multi‑folder selection, with options to delete files and print output.
Built-in thermal printer with fast printing speed, equipped with USB interface allows users to directly export data to a USB flash drive. 。

Model number	HRS-150L
Initial test force	10 k gf (98.07N)
Total test force	60 k gf ( 58 8.4N), 100 k gf (980.7N), 150 k gf (1471N)
Indenter specifications	Diamond Rockwell Indenter ，1.5875 mm Tungsten carbide alloy Ball indenter
Method of Applying Test Force	Automatic (loading) /Protect Load/Unload)
Hardness reading	5.6-inch touchscreen Obtain the hardness value
Test Ruler	HRA , HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Convert Ruler	HV, HK, HRA , HRB W, HRC, HRD , HREW, HRFW, HRG W, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW – real-time conversion, select and switch instantly
Data Statistics	Can store six sets of folders, each set… 1,000 data points—automatically calculate the maximum, minimum, average, total, standard deviation, and repeatability; selective statistical analysis and output are also supported.
Data Output	Built-in printer, USB Interface
Accessibility	Upper and lower limit settings, with over‑tolerance alarm prompts; Curved-surface correction: automatically corrects measurement results for cylindrical and spherical surfaces.
Hardness value Resolution	0.1HR
Shelf life	0–99 s; the initial test force holding time can be set. Total test force holding time and elastic recovery holding time
Maximum specimen height	400 mm
Distance from the center of the indenter to the machine wall	165mm
Power supply	AC 220V, 50Hz
Implementation Standard	GB/T 230 ， ISO 6508, ASTM E18, JIS Z2245
External dimensions	50 0×2 0 0×880mm
Net weight	98kg

Name	Quantity	Name	Quantity
Instrument host	1 Taiwan	Diamond Rockwell indenter	1 only
f1.588mm Ball indenter	1 only	Φ150mm flat test bench	1 one
Φ74mm flat test bench	1 one	Φ40mm V-shaped test stand	1 one
Standard hardness block 60–70 HRC	1 block	Standard hardness block 20–30 HRC	1 block
Standard hardness block 80–100 HRBW	1 block	Weights A, B, C	One each
Power cord	1 root	2A fuse	2 one
Level gauge	1 one	Leveling adjustment screw	4 one
Hex key wrench	1 to put	Wrench	1 to put
Dust cover	1 only	Certificate of Conformity	1 portion
Product Manual	1 portion	Printer manual	1 portion
